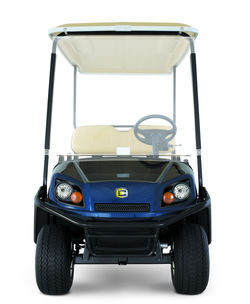

HOSPITALITY BUGGY
SHUTTLE 6
People moving power
This 6 passenger vehicle ideal delivers spacious bench seating and top performance for the ultimate in quiet, efficient and comfortable people moving power.
FEATURES
The Cushman® Shuttle™ 6 is the go-to vehicle for moving people around your course, leisure venue or facility. With four forward facing seats and a rear-facing bench seat it can transport up to 6 people quickly, quietly, comfortable and efficiently.
Comfortable bench seating
Petrol and electric models
1,200lb vehicle load capacity
Wide range of optional accessories
Shuttle 6
Petrol or electric models
shuttle6_vehicledetailpage_feature2_720x450
Transport 6 passengers
Shuttle 6 performance options
optional limited slip differential
Shuttle 6 weather accessories
Optional weather accessories
1/1
AVAILABLE MODELS
SHUTTLE 6
PETROL
13.5hp Kawasaki petrol engine
SHUTTLE 6
ELECTRIC
48V electric drivetrain
All Models Standard Colour
Forest Green / Bright White
DOWNLOADS
Shuttle 6 Brochure
Shuttle 6 Petrol Spec Sheet
Shuttle 6 Electric Spec Sheet
 |
|---|
 |
 |
 |
SPECIFICATIONS
SHUTTLE 6 PETROL
BODY & CHASSIS
- FRAME : Welded Steel w/ DuraShield™ Powder Coat
-
BODY & FINISH : Injection Molded TPO -
STANDARD COLOUR : Patriot Blue
POWER
- POWER SOURCE : 4-Cycle, 24.5 ci (401cc) Low Emission
-
VALVE TRAIN : Single Cylinder OHV -
HORSEPOWER (KW) : 13.5 hp (10.1 kW) Exceeds SAE J1940 Std. -
ELECTRICAL SYSTEM : Starter/Generator. Solid State Reg. -
BATTERY CHARGER : One, 12V Maintenance Free -
KEY OR PEDAL START : Pedal -
AIR CLEANER : Industrial Rated Dry Filter -
LUBRICATION : Pressurized Oil System -
OIL FILTER : Spin-On -
COOLING SYSTEM : Air Cooled -
FUEL CAPACITY : 6 Gallon (22.7 L) Tank -
DRIVE TRAIN : Continuously Variable Transmission (CVT) -
TRANSAXLE : Differential w/ Helical Gears -
GEAR SELECTION : Forward - Reverse -
REAR AXLE RATIO : 11.42:1(Forward) 15.78:1(Reverse)
PERFORMANCE
- SEATING CAPACITY : 6-Person
-
CURB WEIGHT : 1164 lb (528 kg) -
VEHICLE LOAD CAPACITY : 1200 lb (544 kg) -
SPEED : 16 mph +/- 0.5 mph (26 kph +/-0.8 kph)
STEERING & SUSPENSION
- STEERING : Self-Compensating Rack & Pinion
-
SUSPENSION : Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) -
SERVICE BRAKE : Rear Wheel Mechanical, Self-Adjusting Drum -
PARKING BRAKE : Self-Compensating, Single-Point Engagement -
TYRES : Links 18 x 8.5 - 8 (4 Ply Rated)
DIMENSIONS
- OVERALL LENGTH : 136.0 in (345 cm)
-
OVERALL WIDTH : 48.5 in (123 cm) -
OVERALL HEIGHT : 48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof) -
WHEEL BASE : 93.5 in (237 cm) -
WHEEL TRACK : 34.2 in (87 cm) Front 38.0 in (97 cm) Rear -
GROUND CLEARANCE : 4.3 in (11 cm)
SHUTTLE 6 ELECTRIC
BODY & CHASSIS
- FRAME : Welded Steel w/ DuraShield™ Powder Coat
-
BODY & FINISH : Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear) -
STANDARD COLOUR : Patriot Blue
POWER
-
POWER SOURCE : 48V DC -
VALVE TRAIN : 18.1 hp (13.5 kW) Intermittent -
HORSEPOWER (KW) : 48V -
ELECTRICAL SYSTEM : Eight, 6V Deep Cycle -
BATTERY CHARGER : 48V DC Delta Q, 120/230V AC, UL & CSA -
KEY OR PEDAL START : Pedal -
SPEED CONTROLLER : 400 Amp Precision Drive System (PDS) -
DRIVE TRAIN : Motor Shaft Direct Drive -
TRANSAXLE : Differential w/ Helical Gears -
GEAR SELECTION : Dash-Mounted Forward-Neutral-Reverse -
REAR AXLE RATIO : 14.7:1
PERFORMANCE
- SEATING CAPACITY : 6-Person
-
WEIGHT W/O BATTERIES : 890 lb (403 kg) -
CURB WEIGHT : 1385 lb (628 kg) -
VEHICLE LOAD CAPACITY : 1200 lb (544 kg) -
OUTSIDE CLEARANCE CIRCLE : 25.5 ft (7.8 m) -
SPEED : 13 mph +/- 0.5 mph (21 kph +/-0.8 kph)
STEERING & SUSPENSION
- STEERING : Self-Compensating Rack & Pinion
-
SUSPENSION : Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) -
SERVICE BRAKE : Rear Wheel Mechanical, Self-Adjusting Drum -
PARKING BRAKE : Self-Compensating, Single-Point Engagement -
TYRES : Links 18 x 8.5 - 8 (4 Ply Rated)
DIMENSIONS
- OVERALL LENGTH : 136.0 in (345 cm)
-
OVERALL WIDTH : 48.5 in (123 cm) -
OVERALL HEIGHT : 48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof) -
WHEEL BASE : 93.5 in (237 cm) -
WHEEL TRACK : 34.2 in (87 cm) Front 38.0 in (97 cm) Rear -
GROUND CLEARANCE : 4.3 in (11 cm)
